Gearbox

RPM versus Speed Diagram of the available 2CV gearboxes

Other ratio on request

Standard-Gearbox

Standard-Gearbox 2CV6 125mm tyre

click on pic

Exchange gearbox, Price : without VAT 790,10 €

2 types of primary shaft available:

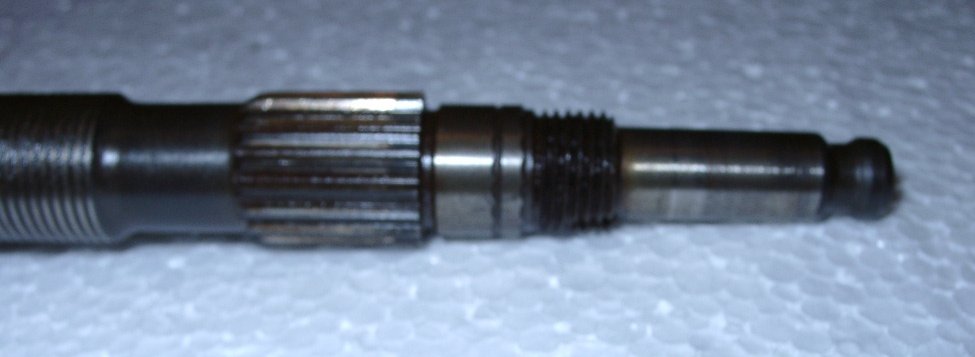

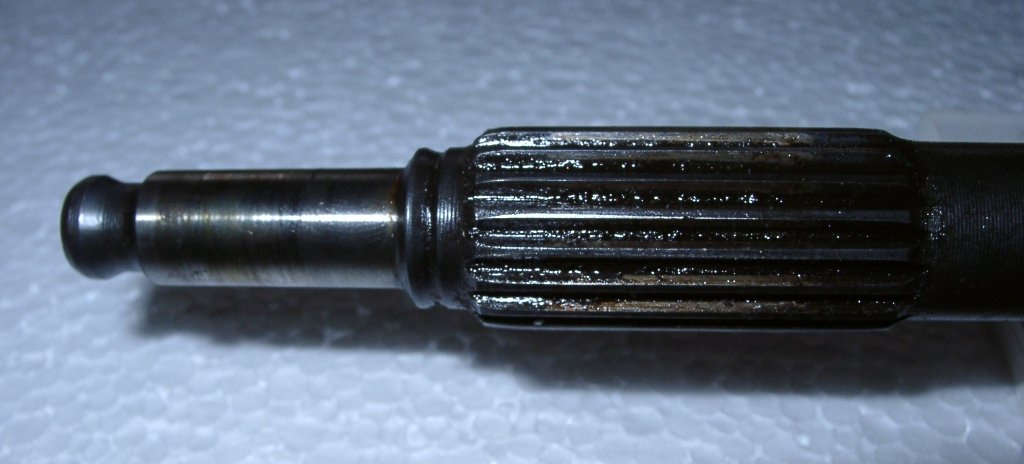

Type 1:	Type 2:
Short splined primary shaft	Long splined primary shaft

By ordering allways indicate type 1 or 2

Long ratio gearbox

Gearbox 2CV long ratio, tyre 125 x 15	Gearbox 2CV long ratio, tyre 145 x 15
click on pic	click on pic

Gearbox long ratio, price : without VAT 1002,72 €

Please specify type of primary shaft with your order:

Type 1:	Type 2:
Short splined primary shaft	Long splined primary shaft

Without VAT : 920,41 €

For building/assembling a long ratio gearbox there are 2 gearbox necessary, more via e-mail on request.


Gearbox Overhaul Kit

This kit allow you to overhaul yourself your gearbox.

The kit contain:
(pic)

• 2 paper gaskets for output drive shaft flange

• 2 shaft seals for output drive shaft

• 2 ball bearings for output drive shafts

• 1 primary shaft ball bearing

• 1 ball bearing for intermediary shaft (at rear of gearbox)

• 1 double raw ball bearing for conical bevel gear shaft (at rear of gearbox)


On request following parts available (most time on stock):

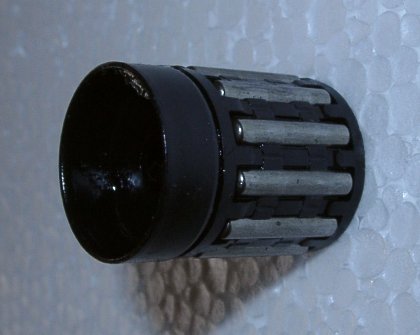

   Needle bearing sleeve

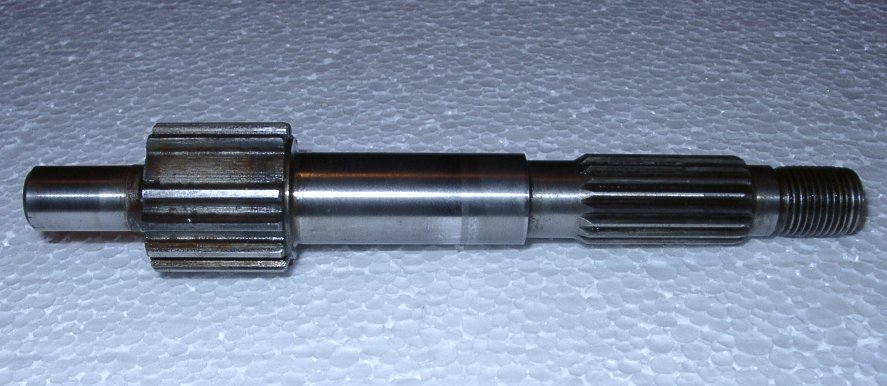

   Intermediary shaft

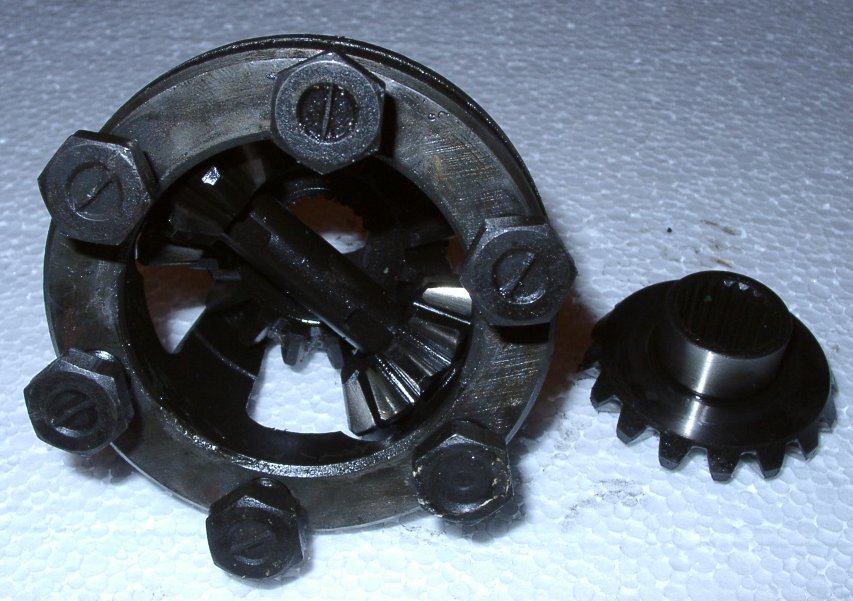

   Differential

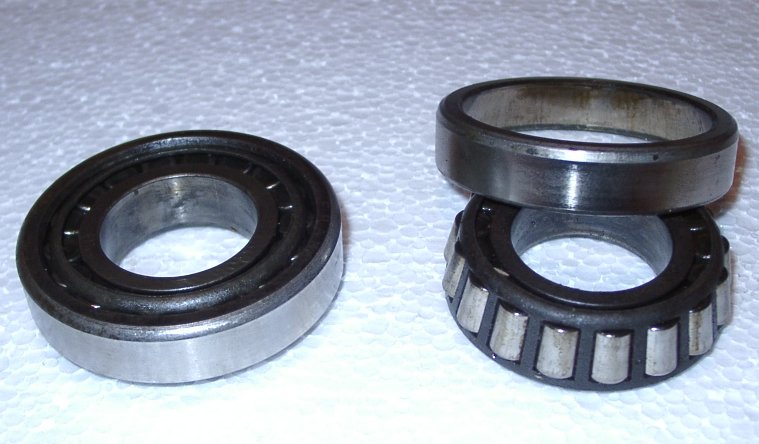

   Conical roller bearing for differential

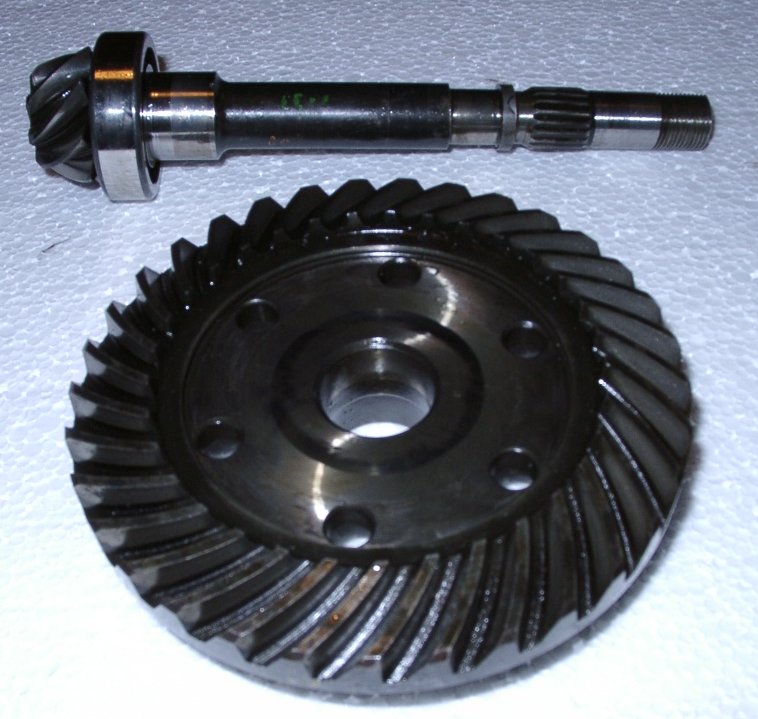

Bevel crown and pinion gear, that are paired parts, delivery only as a pair:

   8 : 33 kit , standard final ratio in 2CV gearbox

   8 : 31 kit , long final ratio

Rear cover, 2 types (pics)

Gearbox housing (pic)

Gearbox top cover (pic)

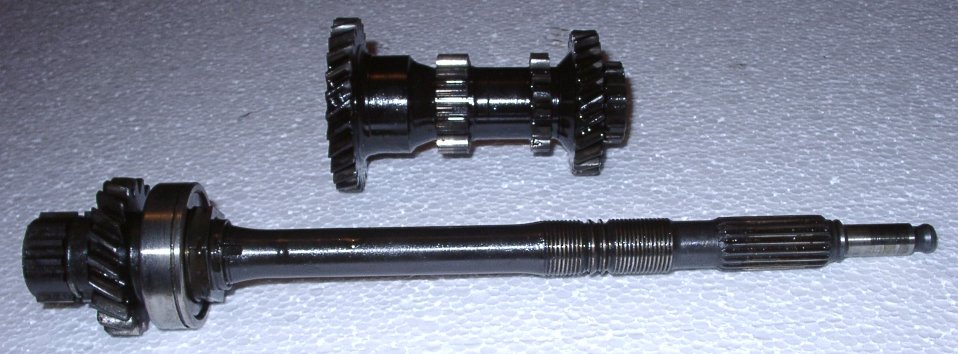

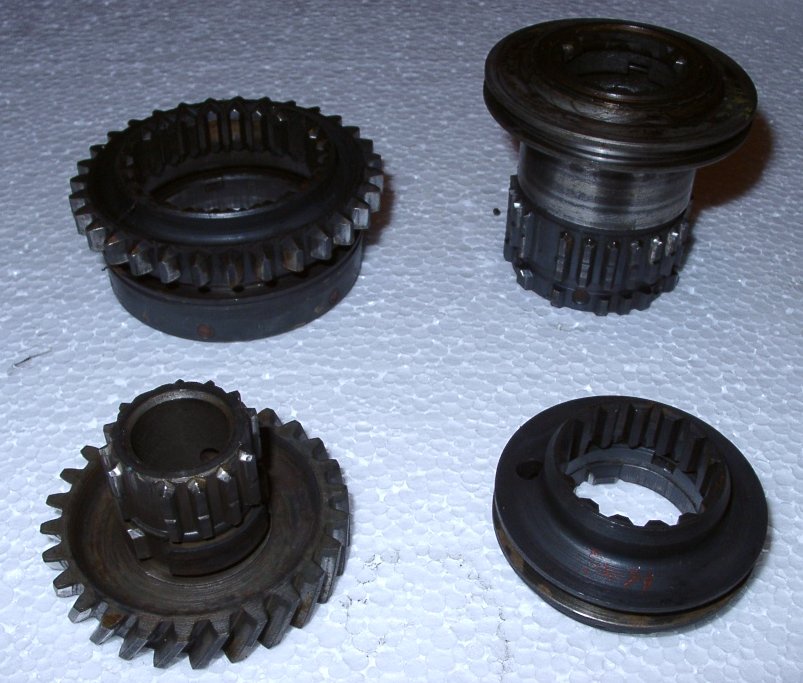

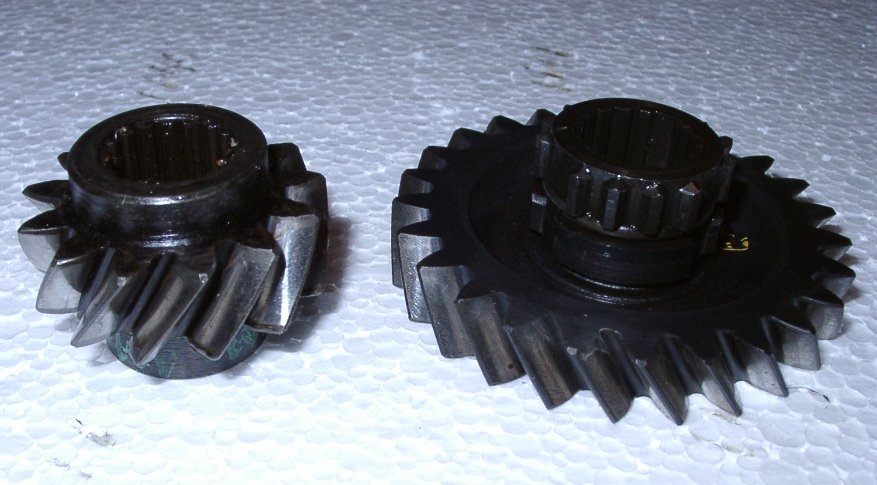

Gear kit:

   4th gear 2CV6

   4th gear 2CV4

   4th gear AMI 8

   3rd gear 2CV6

   3rd Gear 2CV4

   3rd gear AMI 8

   2nd gear all types

   1st gear all types

Rear gear pinion at gearbox sidewall
